Commercial Grade Split Wine Cellar Cooling Systems from the local San Francisco based US Cellar Systems suppler. These include a vast range of products for wine cabinets, closets, larger wine storage rooms and difficult spaces. Although these are built as commercial systems they are priced extremely competitively. This means they can be an ideal solution for a residential application where quality and reliability are a critical factor.
Products:
CC SERIES – Cabinet Coolers
Call for price and or for help with selecting the right system for your application +1 (415) 800-4319.
Available from 1800 to 15000 BTUs Air or Water Cooled
Systems Include:
- CC Air Handler
- Indoor Air Cooled Condensing Unit
- Pre-programmed Remote Digital Controller
SYSTEM INFORMATION
The Cabinet Cooler (CC) Systems are designed to provide refrigerated air to medium temperature spaces. CC evaporators distribute air up to 10’ to the left and right of the coil and return at
the front.
These units provide greater BTU cooling per cubic inch of required installation space making CC the best choice for a cooler needing a very low set point as with white wines.
Prices range $1,963 – $ 9,048
Depending upon configuration – Call for a price for your application +1 (415) 800-4319.

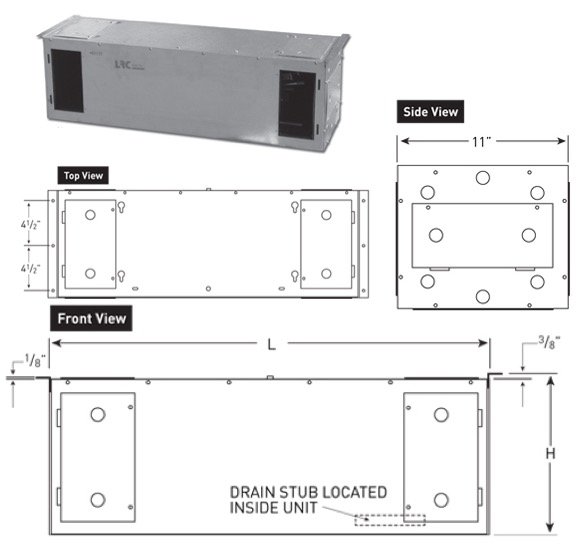

RM SERIES – Rack Mounted
The LPQ series is one of our most popular wine cellar cooling units for a reason. It offers a lot of options for a lot of San Francisco wine lovers.
Comes in either twin or triple configuration, making it ideal for larger wine cellar applications.
Systems Include:
- Staggered, mechanically expanded copper tubing in aluminum fins for high performance.
- Humidity balance is achieved through automatic expansion valve which ensures constant coil temperature.
- ETL Certified
SYSTEM INFORMATION
These are one of our most popular wine cellar cooling systems because of their versatility. They are designed to deliver refrigerated air sufficient for medium-high temperature locations, a perfect choice for the San Francisco area. These systems’ evaporators mount horizontally, often within the wine racking. These can also be placed between ceiling joists, on a wall, or in a soffit. We often use them when installing custom wine cellars, wine tasting rooms, or in large custom wine cabinets.
Prices range $ 2,483 – $ 9,988
Depending upon configuration – Call for a price for your application +1 (415) 800-4319.

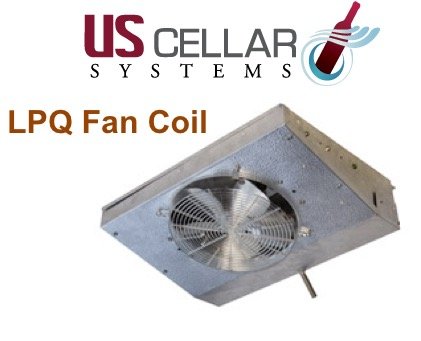

LPQ SERIES – Low Profile Quiet
For those worried about the noise produced by wine cellar, we often recommend the LPQ series by US Cellar Systems.
Twin evaporator systems can be used for very large wine cellar applications.
Systems Include:
- Pump-down solenoid valve protects the compressor in the unlikely event of a leak, reducing the risk of damage.
- ETL Certified.
- Easily removable drain pan.
SYSTEM INFORMATION
As the name suggests, this is a great system for clients concerned about the noise that their wine cellar might make, offering a very quiet and dependable option. They also require very low maintenance and are great for long-term storage. These cooling units are mounted in the ceiling and are an excellent choice for vaulted rooms. Because of the LPQ series design, it promotes circulation within the wine cellar system, which makes it one of our top choices for installation for clients.
Prices range $ 2,057 – $ 8,817
Depending upon configuration – Call for a price for your application +1 (415) 800-4319.

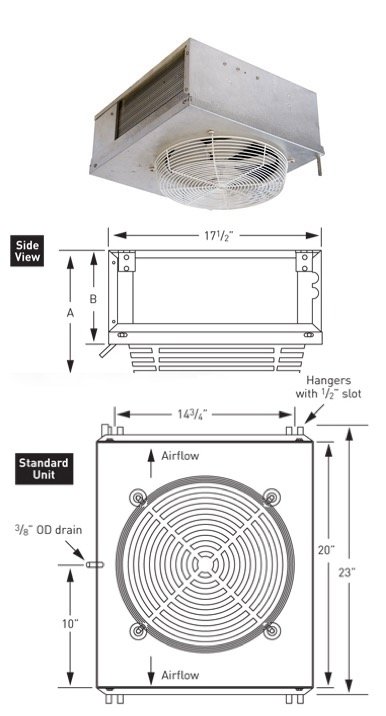

DQ SERIES – Dual Air Cooling Units
The DQ Series for large cabinets or wine cellars.
Ideal for large cabinets and walk- wine cellars.
Systems Include:
- Fan blades are engineered for very low-noise
- Insulated rust-proof aluminum constructed housing
- Permanently lubricated motor
SYSTEM INFORMATION
To promote amazing circulation in long or narrow display cases, the Dual-Air Quiet (DQ) Wine Cellar Cooling Systems are a good choice. They provide refrigerated air from to 55-65 °F. DQ evaporators return air at the bottom and supply two-way air discharge 10-12 feet in both directions at a medium velocity airflow. DQ series evaporators offer cooling capacities from 1,800 to 4,600 BTU per hour. The are used with an R134a refrigerant.
Prices range $ 2,488 – $ 8,014
Depending upon configuration – Call for a price for your application +1 (415) 800-4319.

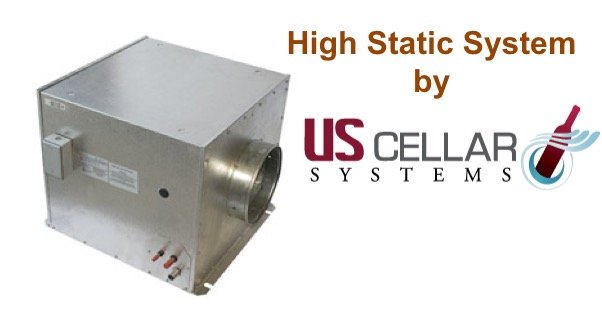

HS SERIES – High Static Refrigeration System
Designed for medium-high temperature wine cellar spaces.
The HS Series Wine Cellar Cooling System by US Cellar Systems
Systems Include:
- Static pressure for ducting up to 25 ft
- Pre-installed valves, which eliminate additional wiring to thermostat
- ETL certified
SYSTEM INFORMATION
If the refrigerated room is as far as 25 feet away, you can choose to install this power HS evaporator. This can eliminate noise or the inconvenience of an in-room evaporator, which frees up valuable space. HS evaporators are available in capacities from 1,800 to 20,000 BTU’s per hour and are used with an R134a refrigerant.
Prices range $ 3,228 – 16,137
Depending upon configuration – Call for a price for your application +1 (415) 800-4319.

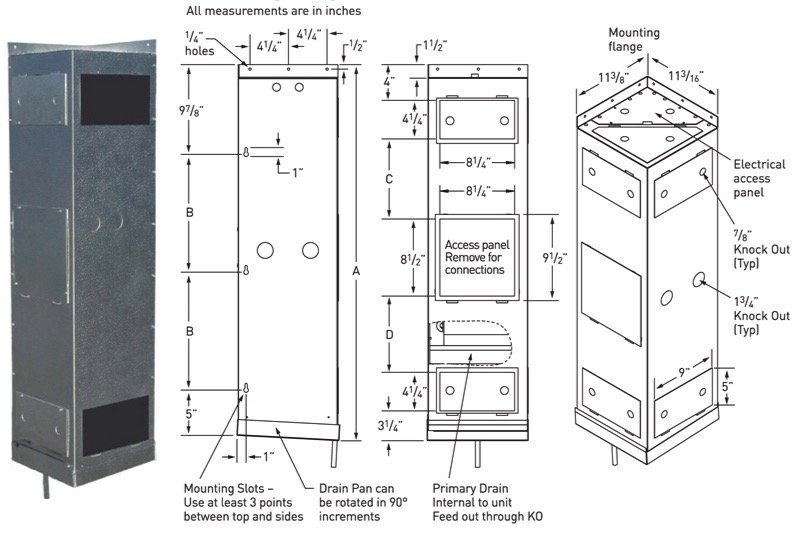

VRM SERIES – Vertical Rack Mount Cooling System
Has the flexibility of being placed between ceiling joists, in a soffit, or directly onto a wall.
This commercial grade, high performance cooling system is a popular option.
Systems Include:
- Triple evaporator systems available for larger applications
- Eco-friendly water-cooled condensing units available
- ETL certified
SYSTEM INFORMATION
This vertical rack mount system is engineered to provide cool air to medium-high temperature in wine cellar spaces. VRM evaporators mount vertically and have multiple panels to access direct or re-direct the supply and return vents. This series is one of US Cellar System’s most popular and versatile options. They are manufactured in standard capacities ranging from 2,600 to 6,600 BTU per hour and are used with R134a refrigerant.
Depending upon configuration – Call for a price for your application +1 (415) 800-4319.
Prices range – $ 2,638 – 12,134

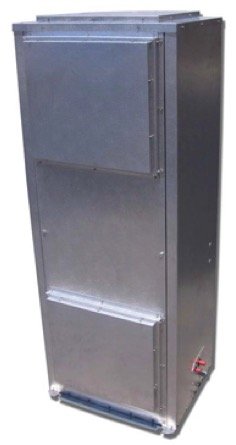

VHS SERIES – Vertical High Static
For medium to high temperature spaces.
Systems Include:
- No noise is added to the wine cellar with this system
- Simple field installation because it’s factory wired
- Provides static pressure for ducting up to 25 ft
SYSTEM INFORMATION
Are you looking for a virtually silent refrigeration system for your wine cellar? Do you want to duct your air from outside of the cellar, leaving as much room as possible inside the storage area for wine stock? Do you need a powerful evaporator that can be placed as far as 25 feet away from the wine room? This may be the right cooling unit for you.
Prices range $3,951 – 17,797
Depending upon configuration – Call for a price for your application +1 (415) 800-4319.

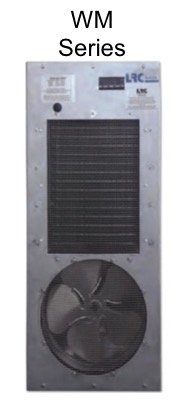

WM SERIES – Wall Mounted Cooler Series
Designed to mount vertically between standard wall studs.
Systems Include:
- Additional coils can be added for increased capacity
- Add condensing units for security redundancy up to 100%
- Extreme high or low ambient precautions are available for all sizes
SYSTEM INFORMATION
If you’ve got an odd shaped room, this may be just the right choice as your wine cooling system. It’s similar to a through-the-wall unit as the thermostat and temperature sensor installed. But the big advantage to this unit is that it requires no exhaust, and only impedes an inch into the room.
Prices range $ 2,693 – 7,010
Depending upon configuration – Call for a price for your application +1 (415) 800-4319.

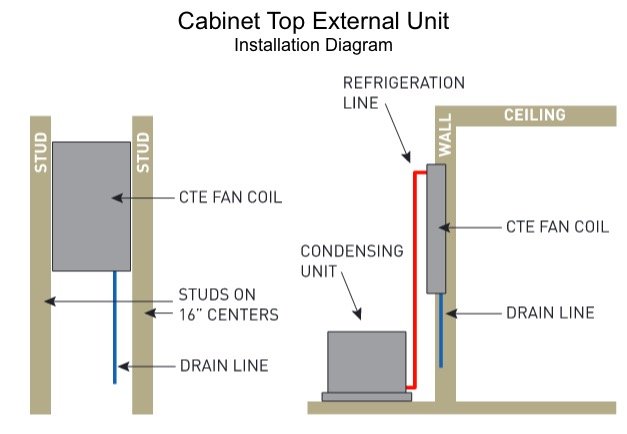

CTE SERIES – Cabinet Top External Unit Systems
Designed for medium to large humidity controlled spaces like wine cabinets/walls, fir cabinets, and tobacco humidors.
Systems Include:
- Has a steady coil temperature, providing consistent humidity, reducing need for expensive climate controls used in most units
- Extremely quiet
- Extra insulation prevents sweating at higher ambient room temperatures
SYSTEM INFORMATION
Designed to maximize the space within your wine cellar storage space. It is installed outside the cabinet, either vertically or horizontally. For cabinets that require 2,513 to 3,547 BTU per hour. You can special order chilled models.
Prices range $ 2,606 – 8,994
Depending upon configuration – Call for a price for your application +1 (415) 800-4319.
CTI SERIES – Cabinet Top Internal Evaporator
Designed small to accommodate medium to large sized humidity controlled wine cabinets/walls, fir cabinets, and tobacco humidors.
Systems Include:
- Flat black powder coating with other colors available.
- Thermally protected with a PSC motorized impeller.
- Coil and drain pain dipped and baked with LRCCoat™ anticorrosion coating
SYSTEM INFORMATION
For minimum space usage, this unit’s evaporator has only a 6” profile. Available in capacities from 1,537 to 3,546 BTU/hour. Can be used with R22, R134a, or R404a refrigerants. Special order chilled water models.
Prices range $ 2,919 – 9,340
Depending upon configuration – Call for a price for your application +1 (415) 800-4319.
Installation services and maintenance plans available upon request
Must be within 100 miles San Francisco
